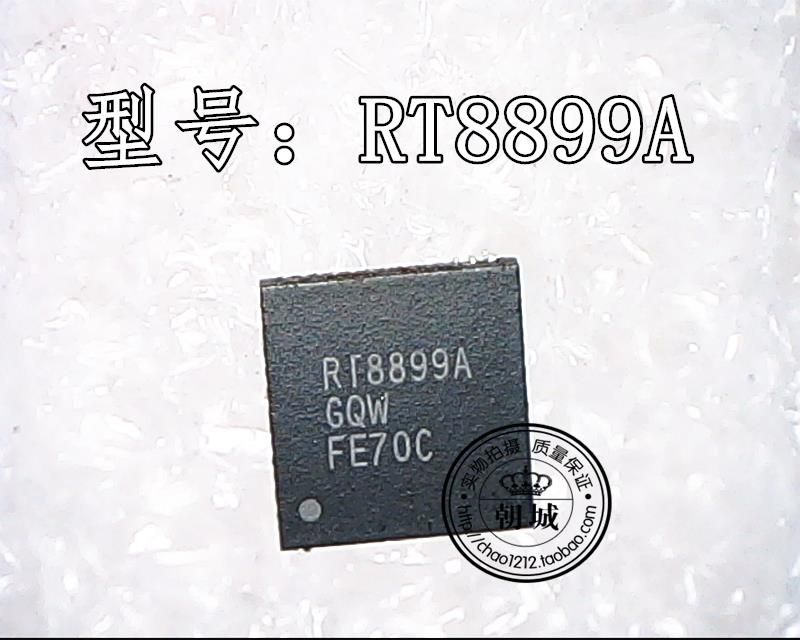

RT8899A

RT8899A Status Active VID Table Support SVI2 Number of Phases 2;3 Vcc (typ) (V) 5 Vin (min) (V) 4. 5 Vin (max) (V) 26 Accuracy (Vout =1V) (+/- %) 0. 5 Freq (typ) (kHz) 300 Built-in DAC Generator Yes Number of MOSFET Drivers 1;2 Features Adjustable Frequency;DCR Current Sense;Diode Emulation Mode;Droop Control;Enable Input;Fast Transient Response;G-NAVP Control;OCP;OVP Package Type Features 3/2/1-Phase (VDDC) + 2/1-Phase (VDDCI) PWM Controller 3 Embedded MOSFET Drivers G-NAVP TM Topology Support Dynamic Load-Line and Zero Load-Line Diode Emulation Mode at Light Load Condition SVI2 Interface to Comply with AMD Power Management Protocol Build-in ADC for V OUT and I OUT Reporting Immediate OV, UV and NV Protections and UVLO Programmable Dual OCP Mechanism 0. 5% DAC Accuracy Fast Transient Response Power Good Indicator Over-Current Indicator 52-Lead WQFN Package RoHS Compliant and Halogen Fre
