Модуль таймера

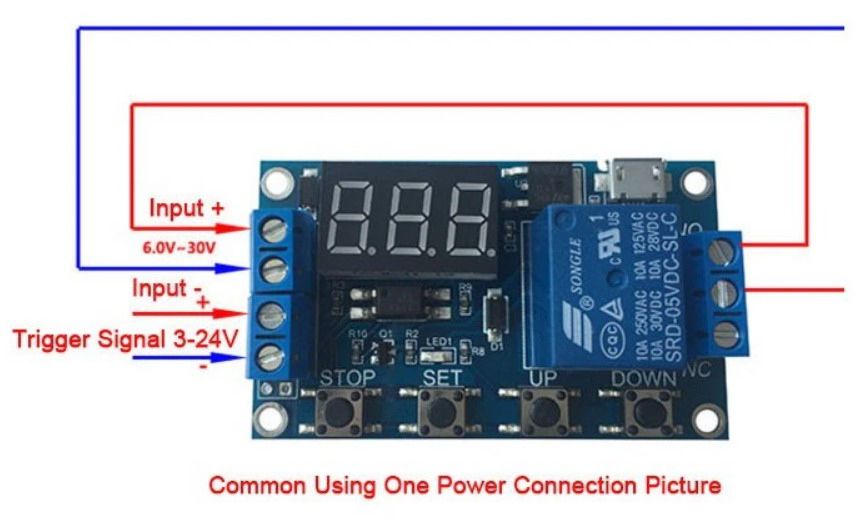

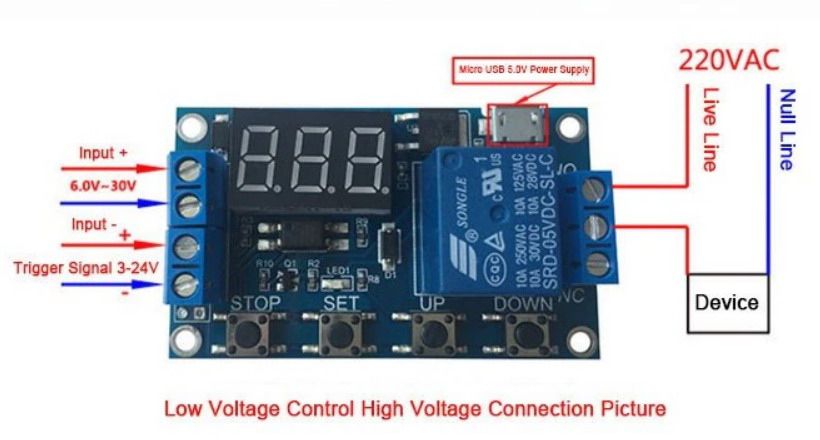

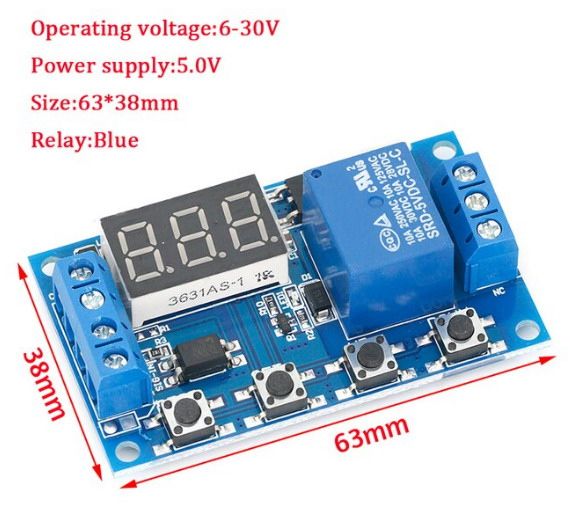

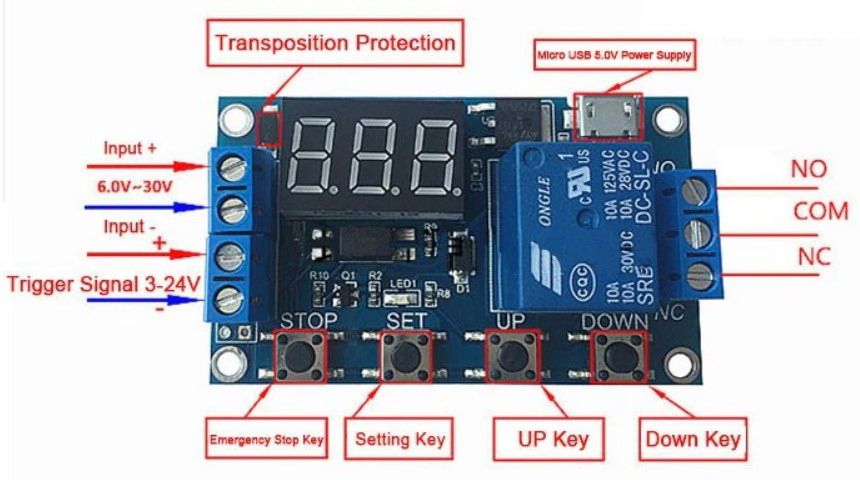

Плата таймера.   Оригінальний опис: Product introduction: 1. Operating voltage: 6--30V 2. Trigger Signal Source: High Level Trigger (3. 0 V-24 V) , signal ground and system ground are not common, which can increase anti-interference abilit system (short circuit can also connect with a ground common) 3. Output Capacity: can control no more than DC 30V 5A AC or 220 V devices 5A 4. Optocoupler Isolation: improve the anti-interference ability, after the parameter setting, it will memory forever Warning: Relay contact is passive and electricity production; 1 channel has the control function on / off Operation mode: P1: After triggered signal, power relay on time OP, then turn off; within the OP period following operation: 1) P1. 1: signal being triggered again is not effective 2) P1. 2: signal being triggered again, start time again 3) P1. 3: signal being triggered again, reset; disconnect re
